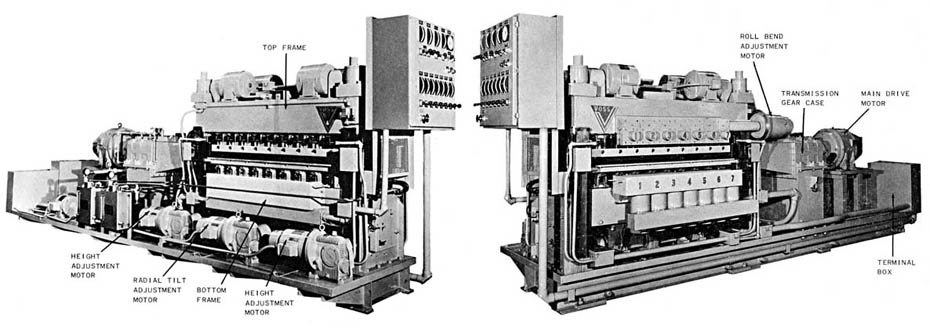

66" x 1.687" 19-ROLL VOSS LEVELER, SERIAL NO. 5070
Age: 1966
Top motorized roll bend and individual back up roll motorized adjustment added 1970.

Type: Inverted

Right Hand

Work Roll Width: 66"

Work Roll Diameter: 1.687"

Flights Back Ups: 7 (5 motorized)

Main Motor: 75 HP, 850/1700 RPM, 240 V. DC, Reliance, Frame 683A3

Speed: 300 FPM (390 max.)

Motorized Adjustments:
Roll Height: (2) Right Angle Gear Motors, 3 HP, 60 RPM, 220/440 V. AC, 3/60, Frame 224 RW with Uni Brake
Roll Bend: (4) 3 HP, 220/440 V. AC, 3/60
Radial Tilt: (1) Right Angle Gear Motor, 3 HP, 60 RPM, 220/440 V. AC, 3/60, Frame 224RW with Uni Brake
Top Roll Adjustment: (1) 3 HP, 1050 Rpm, 220/440 V. AC, 3/60, Reliance, Frame 213D, with Stearns Brake
Oil Pump: 1 HP, 1200 Rpm, 220/440 V. AC, 3/60, Reliance, Frame 184

66" x 1.687" 19-ROLL VOSS LEVELER SERIAL NO. 145-LL2545-61
Age: 1961 Top motorized roll bend and individual back up roll motorized adjustment added 1970

Type: Inverted

Left Hand

Work Roll Width: 66"

Work Roll Diameter: 1.687"

Flights of Back Ups: 7 (5 motorized)

Main Motor: 60 HP, 1750/2400 RPM, 240 V. DC, G.E. Frame 405A Equipped with 3/4 KW DC Tachometer

Speed: 60 - 300 FPM

Motorized Adjustments:
Roll Height: G.E. Frame 184, 3 HP, 1800 RPM, 208/220/440 V. AC, 3/60, with Stearns Brake
Roll Bend: G.E Frame 184, 3 HP, 1800 RPM, 208/220/440 V. AC, 3/60, with Stearns Brake
Radial Tilt: G.E. Frame 184, 3 HP, 1800 RPM, 208/220/440 V. AC, 3/60, with Stearns Brake
Top Roll Adjustment: G.E. Frame 213, 3 HP, 1200 RPM, 208/220/440 V. AC, 3/60, Stearns Brake
Oil Pump:G.E. Frame 184, 1 HP, 1200 RPM, 208/220/440 V. AC, 3/60
