*MKW Type: MKW refers to a distinctive
mill design by Schloemann that
?utilizes a
small diameter work roll, an intermediate roll that
?applies side
pressure to the work roll, and a large diameter
?back up roll.
Rolls:
Work: 5?dia. x 31.5?face
Back Up: 27.20?dia. x 31.5?br>
Intermediate: 3.97?dia.
Support: 7.87?dia.
Material Previously Rolled:
Width: 12 ¼” min. x 26?max.
Gauges: .375?max. to .035?br>
Coil Weight: 28,000 lbs.
Coil I.D. Entry ?18??24?br>
Exit ?20?br>
Coil O.D.: 72?max.
Rolling Speed: 600
?1500 FPM
Motors:

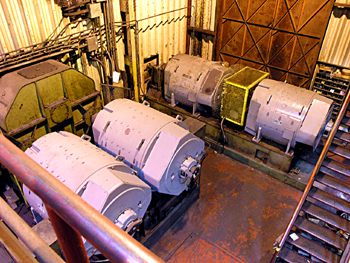

Mill Drive: (2) at 1000 HP, 400/1000 RPM, 600 V. DC
Rev. Reels: (2) at 600 HP, 300/1120 RPM, 600 V. DC Each
Reel (1200 HP per reel)
Pay Off Reel: (1) at 100 HP
Rewrap: (2) at 100 HP
Equipment:
Pay Off Reel
Pinch Roll
Flattener
Entry Reversing
Reel

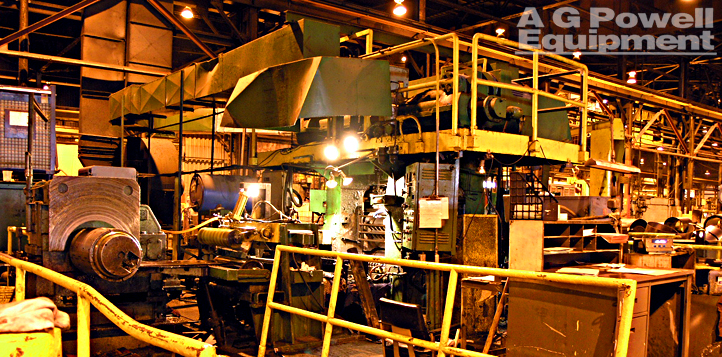

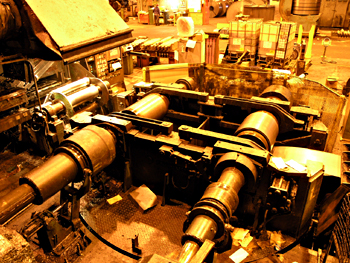

MKW Mill Stand:
?span style='font:7.0pt "Times New Roman"'>
Note:?Identical to a 4-Hi Stand.?The only difference is the roll configuration.
?span style='font:7.0pt "Times New Roman"'>
Hydraulic Long Stroke
Cylinder Screws
?span style='font:7.0pt "Times New Roman"'>
Roll Change Sled
?span style='font:7.0pt "Times New Roman"'>
Back Up Roll Driven
Entry &
Exit Deflector Rolls
Accuracy Gauge
?Entry & Exit
Dual Exit Rev.
Reels:
?span style='font:7.0pt "Times New Roman"'>
Note:?The reels are on a carousel; either can couple
to the 1200 HP reversing reel drive motors or a 100 HP rewrap drive.
Two Rewrap Reels
Exit Coil Conveyor
with Upender
Control:
?span style='font:7.0pt "Times New Roman"'>
(7) G. E. Model 2000
DC Drives ?new 2002
?span style='font:7.0pt "Times New Roman"'>
Hydraulic AGC ?new 2002
?span style='font:7.0pt "Times New Roman"'>
Operation Interface ?
MMI + 2-OC2000 ?new 2002
?span style='font:7.0pt "Times New Roman"'>
Isolation Transformers
?G. E. Dry Type, installed 1992
Large Complement
of Spares, including Work, Intermediate, Support, and Back Up Rolls.
Roll Grinder
available.
|
