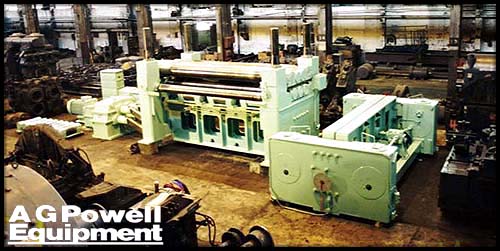

124" x 1-1/4" BACKED UP PLATE LEVELER
MANUFACTURER:
 SKET (Germany)
AGE: 1986
TYPE: UBR
replica swiss rolex milgauss watcheshttp://www.qualitywatchesdepot.com/swiss-rolex-milgauss.html
www.meetchina.net
SERIAL NO.: 61-464-6048
MATERIAL: (Cold)
MAX. WIDTH:
 124" (3150mm)
china yang tze
MAX. THICKNESS:
1-1/4" (32mm)
MIN. THICKNESS: .315" (8mm)
MIN. LENGTH:
 47" (1200mm)

ROLLS:
Entry/Exit Deflector Rolls: Qty: 2 ,Lenght: 126" (3200mm) ,
Daimeter: 8.66" (220mm)
Leveling Rolls: Qty 7 , Number. of Driven Rolls: 5 , Lenght 134" (3400mm)
Diameter: Driven: 10-5/8 (270mm) , Non-Driven: 11.4" (290)mm)
Backup Rolls: Qty: 18 , Configuration: 8 Top - 10 Bottom ,
Lenght:15" (380mm) , Diameter: 10-1/2 (268mm)

MAIN DRIVE MOTOR: KW: 85 (115 HP) , RPM: 990 , Volts: 380 AC
ADJUSTMENTS:
Screwdowns: Drive: 11KW , Max. Vert. Travel: 4-3/4" (120mm)
Top and Back Top Non-Driven Rolls: Vertical Travel ,
Eccentric Roll Drive: 2 - 3.7 KW
ADDITIONAL FEATURES:
Forced Lubrication , Electrical Control , Cleaned and Painted, Drawings Available.
