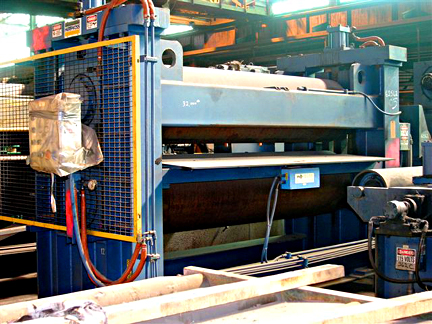

Mfg: Herr Voss

Age: 1994

EQUIPMENT:
Processing Speed: 3.53 to 20 FPM with 50 FPM over speed
Pass Line Height: 48"
Rolls:
24" diameter x 96" face
Roll Necks: 7" diameter
Posts: (4) 12" wide flange beams with 17 sq. in cross section
Double Row Timken Roller Bearings
7" I.D. x 5.6" Wide
Drives: (2) 10 HP, 1150/1380 RPM, 250 V. DC Motors through
Two quadruple reduction 298:1 speed reducers
Output Torque Per Drive: 159,000 inch lbs. (x 2 = 318,000 inch lbs.)
Hydraulic Screwdowns:
Cylinder: 5" bore x 4" stroke with 2" rod diameter
Weight of Machine: 52,000 lbs.
Two units available.
