22" x 40" NON-REV. COLD MILL
http://meetchina.net

Mfg. Lewis
Age: 1954
Coil Weight: 10,000 lbs.
Post Size: 12" x 14 1/2"
Window Dimension: 2' wide x 6' 1 1/4"
Mill Bearing: Timken Roller
Screw Pitch Diameter: 7"
Screwdown Motor: (2) 5 HP, 900 RPM
Srewdown Ratio: 1080/1
Screwdown Speed: .083" to .208" per minute
Main Mill Drive Motor: 200 HP, 575/1150 RPM
Mill Speed: 309 to 618 FPM
Material Width: 34"

Equipment:

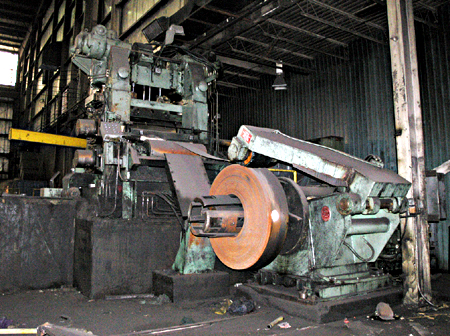

Pay Off Reel: Mandrel: 21" dia. x 41" face, Tension: Friction Brake

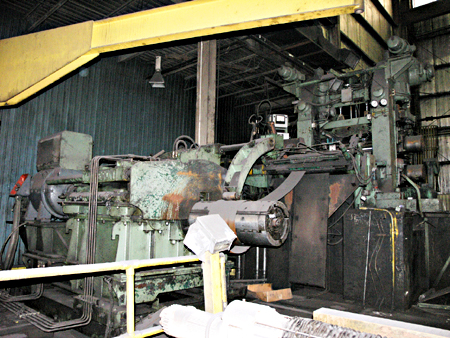

Tension Reel: Mandrel: 21" dia. x 41" face, Motor: 100 HP, 400/1200RPM, DC, Gear Ratio: 9.69:1

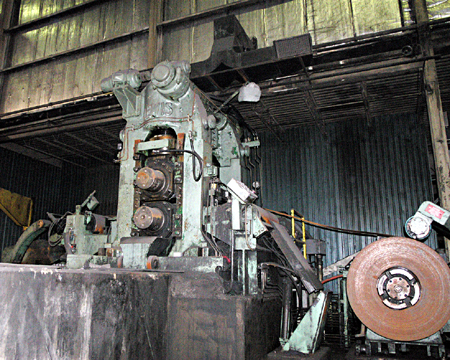

2-Hi Mill Stand: With shoe Plates, Motorized Screwdowns, and Combination Gear and Pinion
