Mfg:
Mesta
Age: 1968
Material
& Capacity As Previously Operated:
Capacity: Cold Rolling - 56 TPH, Tempering - 100 TPH
Entry Material:
Pickled Hot Rolled Coil
Thickness: 1.6 mm to 6.0 mm (.063" - .236")
Width: 610 mm to 1880 mm (24" - 74")
I.D.: 508 mm (20")
O.D.: 2134 mm (84") max.
Weight: 30 metric tons (66,000 lbs.)
Product:
Thickness: .4 mm to 3.2 mm (.016" - .126")
Width: 610 mm to 1880 mm (24" - 74")
I.D.: 508 mm (20") or 610 mm (24")
O.D.: 914 mm (36") up to 2134 mm (84")
Weight: 30 metric tons (66,000 lbs.)

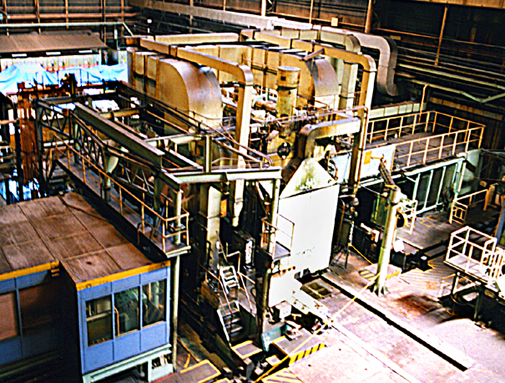

This Mill
is offered complete as installed less all rolls, chocks,
and bearings.
|
|
Equipment
Specifications:
Rolling Speed: 0 to 300/760 m/min.
(0 to 1000/2500 FPM)
* The Mill can be used for either cold
rolling
or tempering.
Work Roll Diameter for Cold Rolling: 21"
Work Roll Diameter for Tempering: 23"
Motors (All 750 V. DC):
Main Drive:
Qty: 4 (2 sets of 2)
KW: 4000 (4 x 1000)
RPM: 250/710
Tension Reel - Front:
Qty: 4 (2 sets of 2)
KW: 1680 (4 x 420)
RPM: 250/1200
Tension Reel: - Rear:
Qty: 4 (2 sets
of 2)
KW: 1680 (4 x 420)
RPM: 250/1200
Equipment
/Features:
Entry Coil Conveyor with Coil Opener
Entry Tension Reel with In Ground Coil Car,
Outboard Bearing, and
Coil Hold Down Roll 4-Hi Mill Stand equipped with Front and Back Deflector
Rolls
Electromechanical Screwdowns
Exit Tension Reel equipped with In Ground Coil Car,
Outboard Bearing, and Belt
Wrapper Exit Coil Conveyor with Coil Banding Station
All Coil Conveyor: "I"
Horizontal
New Control - 1979
Original M.G. Set
|
